Hybrid Inverter
12KW Hybrid Inverter
Max. parallel units
Up to 9 pcs
Rated input voltage
230Vac, L/N/PE
Input voltage range
90~280Vac
Frequency
50/60Hz
Frequency range
50/60Hz
Maximum efficiency
94%
Switching time
10ms
AC reverse protection
Yes
Max. grid-connected power
12000W
Rated output power (VA)
12000
Rated output power (W)
12000
Rated output voltage
230Vac
Output voltage error
<3% (THDv)
Output frequency range
50/60Hz
Peak power
24000VA
Rated battery voltage
48V
Battery voltage range
42~60V
Max. PV open circuit voltage
500Vdc
Max. permissible PV power
24000W

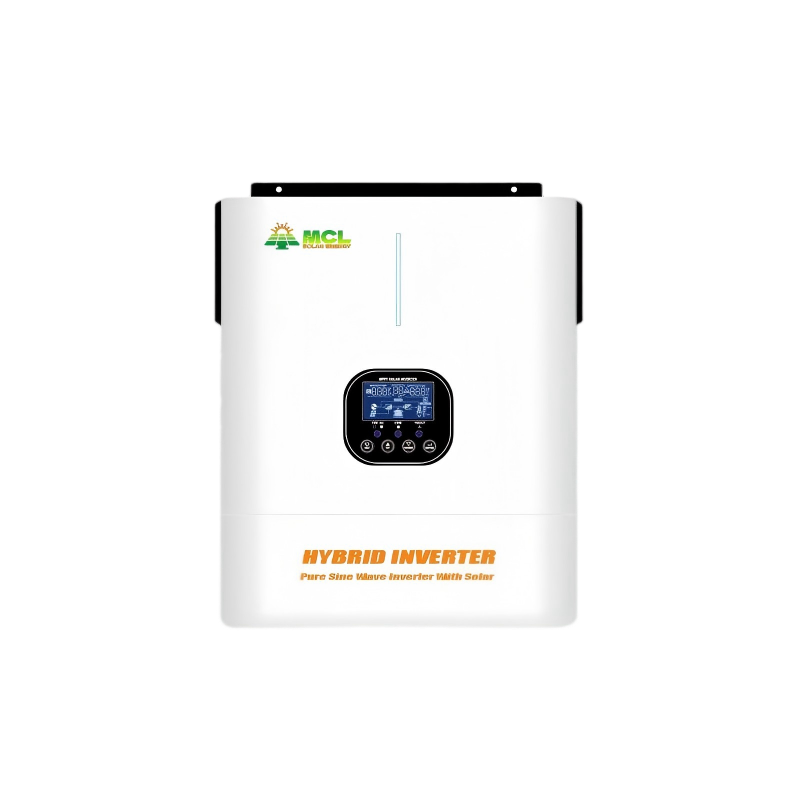

6.2KW Hybrid Inverter
Max. parallel units
Up to 9 units
Rated input voltage
230Vac
Input voltage range
90~280Vac
Frequency
50/60Hz
Frequency range
50/60Hz (Auto)
Maximum efficiency
93%
Switching time
10ms (Typical)
AC reverse protection
Available
Max. grid-connected power
6200W
Rated output power (VA)
6200
Rated output power (W)
6200
Rated output voltage
230Vac
Output voltage error
±5%
Output frequency range
50Hz
Peak power
12400VA
Rated battery voltage
48V
Battery voltage range
42~60V
Max. PV open circuit voltage
500Vdc
Max. permissible PV power
6500W
