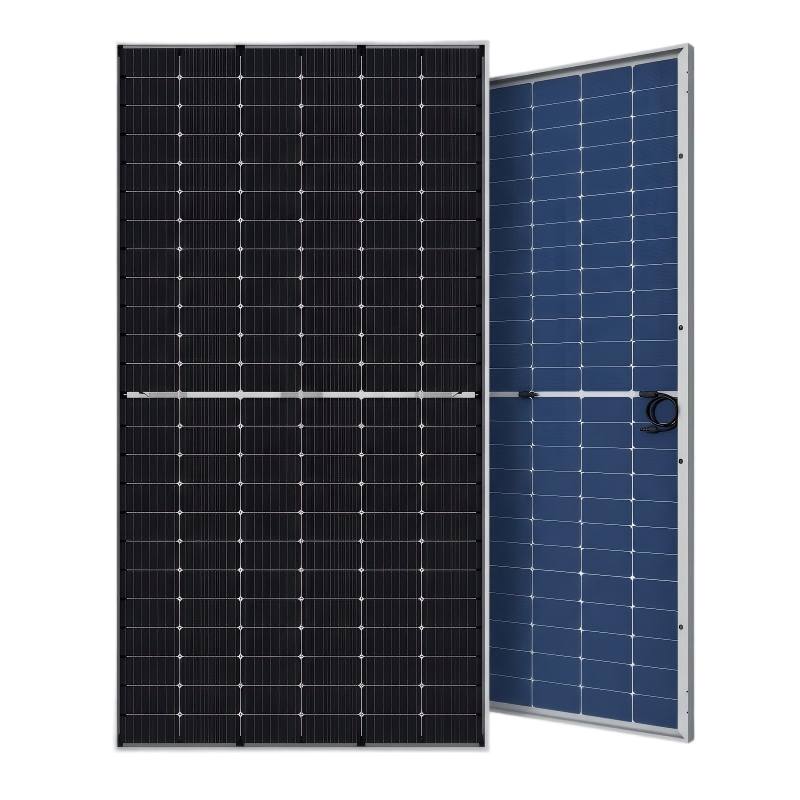

Solar Panels
Solar Panel
Module Type
MCL610N-144
Rated Maximum Power
610W
Cell Technology
N-Type
Module Category
Bifacial
Cell Material
Mono-crystalline
Power Sorting
0~+5W
Max Power Voltage (Vmp)
43.00V
Max Power Current (Imp)
13.84A
Open Circuit Voltage (Voc)
52.10V
Short Circuit Current (Isc)
14.55A
Bifaciality
80 ± 5%
Grade
A
Max System Voltage (DC)
1000V/1500V DC (IEC)
Max Overcurrent Protection
30A
Dimensions
2278*1134*30mm
Module Weight
32KG
Test Conditions (STC)
AM1.5 1000W/m² 25°C
